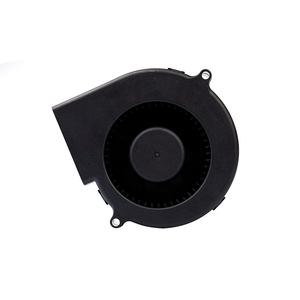

12v High Pressure Motor Dc Blower Fan

Manufacturer Product Number: DC Blower 9733

Manufacturer:D-Fan

Material:plastic

Place of Origin:Guangdong, China

Shipping: Express/Ocean freight/Land freight/Air freight

MOQ: 3000PCS
Availability:
Quantity:
  • 9733

  • D-FAN

  • Hotels, Garment Shops, Building Material Shops

  • Plastic

Does the induction cooker have a cooling fan?
A: Electric and induction cooktop have an internal cooling fan to help prevent damage to internal components such as burners, relay panels and control panels from overheating.

All induction cookers have fans. When the temperature sensor in the induction cooker senses that the temperature in the device is rising, the fan will turn on automatically. This is a device that protects the electronics inside the device. The sensor will also turn on the fan at any time when the power of the component is increased (on high Settings), again protecting the electronic devices in the unit. After the power is turned off, the fan can continue to work.

It won't shut down until the temperature inside the unit drops. Xingdong is specialized in the production of kitchen appliances cooling fan and blower manufacturers. The induction cooker's built-in cooling fan has been turned on to prevent the electronics from overheating.

12V/24V 5V 97*97*33mmm blower is the best choice, the high speed can reach 3200RPM or more. The fan can add PWM function to control the speed and reduce noise. We are a cooling fan manufacturer that can provide custom service, in addition to PWM, other functions are optional, such as automatic start, soft start, RD, FG. All blowers are CE, TUL, TUV, UL, RoHS certified.


● Specifications(规格)


















型号
Model
轴承类型
Bearing
Type
电压
Rated
Voltage
电压范围
Operation
Voltage
电流
Current
转数
Speed
风量
Air
Flow
风压
Static
Pressure
噪音
Noise
Level
重量
Weight
VDCVDCARPMCFMmmH20dBAg
DFH9733SSleeve1210.8~13.21.00320024.9023.0648.83146
DFM9733S0.60300023.1020.8643.67
DFL9733S0.50260020.1015.0334.34
DFH9733BBall1.00320024.9023.0648.83
DFM9733B0.60300023.1020.8643.67
DFL9733B0.50260020.1015.0334.34
DFH9733SSleeve2421.6~26.40.60320024.9023.0648.83
DFM9733S0.40300023.1020.8643.67
DFL9733S0.30260020.1015.0334.34
DFH9733BBall0.60320024.9023.0648.83
DFM9733B0.40300023.1020.8643.67
DFL9733B0.30260020.1015.0334.34
