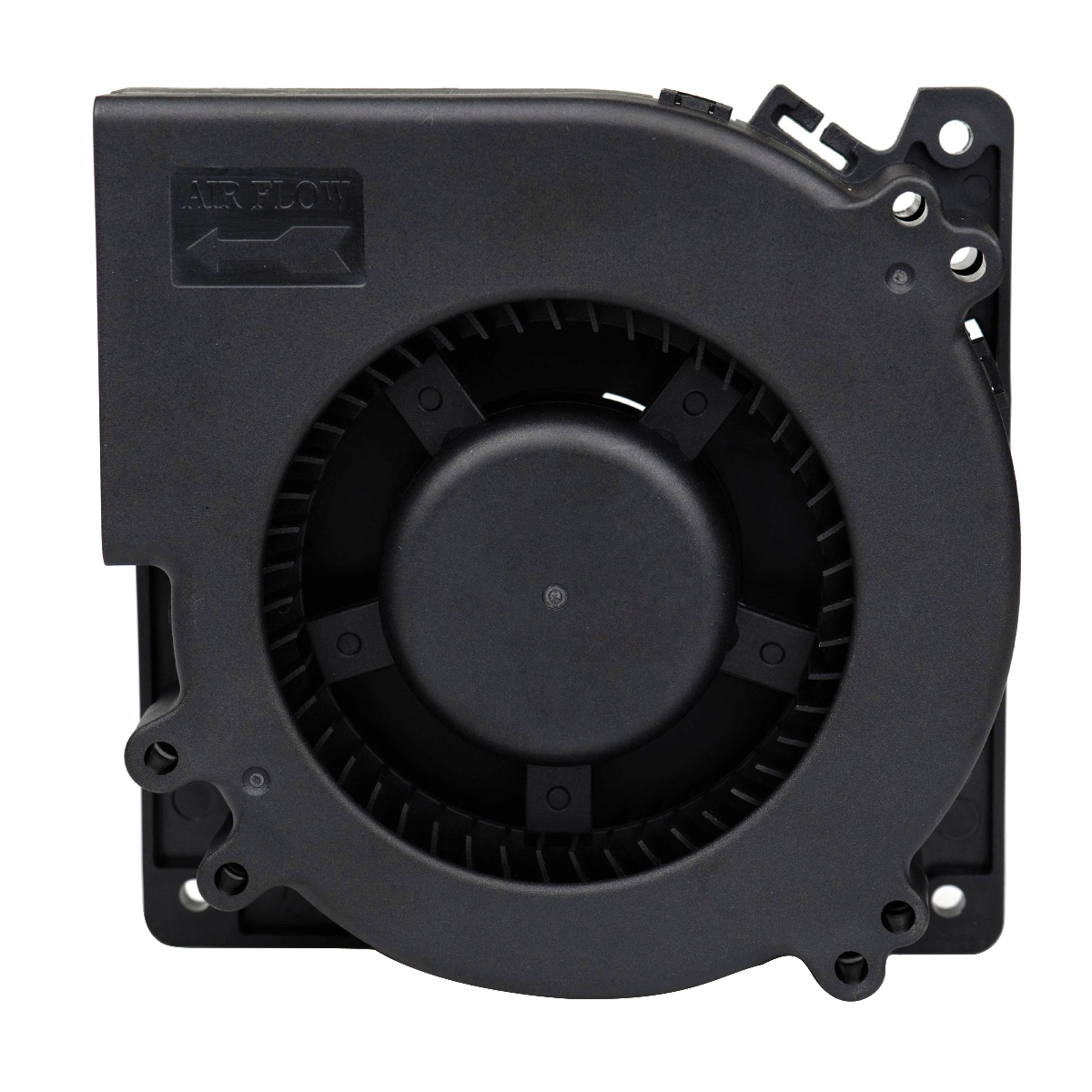

A DC blower is a device that converts electrical energy into mechanical energy. After continuous compression of air, it can generate a large amount of wind. The small DC blower has various characteristics such as easy to use, safe operation, high-efficiency furnace, and low efficiency, so it is sought after by consumers. The main models of small DC blowers are 5V DC Blower, 12V DC Blower, 24V DC Blower. Today, I will explore the excellent performance of the 12V small DC blower.
The DC blower converts direct current into mechanical energy to drive the wind wheel to rotate. The air inlet and outlet are in the vertical wind direction, and constantly compress the air to generate a large air volume for blowing. Collectively referred to as DC blower.
| ● Specifications（规格） | |||||||||
| 型号 Model | 轴承类型 Bearing Type | 电压 Rated Voltage | 电压范围 Operation Voltage | 电流 Current | 转数 Speed | 风量 Air Flow | 风压 Static Pressure | 噪音 Noise Level | 重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| DFH1232S | Sleeve | 12 | 10.8～13.2 | 1.50 | 2100 | 31.83 | 25.10 | 45.80 | 240 |
| DFM1232S | 0.80 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232S | 0.40 | 1600 | 25.87 | 14.10 | 40.90 | ||||
| DFH1232B | Ball | 1.50 | 2100 | 31.83 | 25.10 | 45.80 | |||
| DFM1232B | 0.80 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232B | 0.40 | 1600 | 25.87 | 14.10 | 40.90 | ||||
| DFH1232S | Sleeve | 24 | 21.6～26.4 | 0.40 | 2100 | 31.83 | 25.10 | 45.80 | |
| DFM1232S | 0.30 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232S | 0.20 | 1600 | 25.87 | 14.10 | 40.90 | ||||
| DFH1232B | Ball | 0.40 | 2100 | 31.83 | 25.10 | 45.80 | |||
| DFM1232B | 0.30 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232B | 0.20 | 1600 | 25.87 | 14.10 | 40.90 |
A DC blower is a device that converts electrical energy into mechanical energy. After continuous compression of air, it can generate a large amount of wind. The small DC blower has various characteristics such as easy to use, safe operation, high-efficiency furnace, and low efficiency, so it is sought after by consumers. The main models of small DC blowers are 5V DC Blower, 12V DC Blower, 24V DC Blower. Today, I will explore the excellent performance of the 12V small DC blower.
The DC blower converts direct current into mechanical energy to drive the wind wheel to rotate. The air inlet and outlet are in the vertical wind direction, and constantly compress the air to generate a large air volume for blowing. Collectively referred to as DC blower.
| ● Specifications（规格） | |||||||||
| 型号 Model | 轴承类型 Bearing Type | 电压 Rated Voltage | 电压范围 Operation Voltage | 电流 Current | 转数 Speed | 风量 Air Flow | 风压 Static Pressure | 噪音 Noise Level | 重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| DFH1232S | Sleeve | 12 | 10.8～13.2 | 1.50 | 2100 | 31.83 | 25.10 | 45.80 | 240 |
| DFM1232S | 0.80 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232S | 0.40 | 1600 | 25.87 | 14.10 | 40.90 | ||||
| DFH1232B | Ball | 1.50 | 2100 | 31.83 | 25.10 | 45.80 | |||
| DFM1232B | 0.80 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232B | 0.40 | 1600 | 25.87 | 14.10 | 40.90 | ||||
| DFH1232S | Sleeve | 24 | 21.6～26.4 | 0.40 | 2100 | 31.83 | 25.10 | 45.80 | |
| DFM1232S | 0.30 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232S | 0.20 | 1600 | 25.87 | 14.10 | 40.90 | ||||
| DFH1232B | Ball | 0.40 | 2100 | 31.83 | 25.10 | 45.80 | |||
| DFM1232B | 0.30 | 1800 | 28.89 | 18.55 | 43.70 | ||||
| DFL1232B | 0.20 | 1600 | 25.87 | 14.10 | 40.90 |
