| Quantity: | |
|---|---|

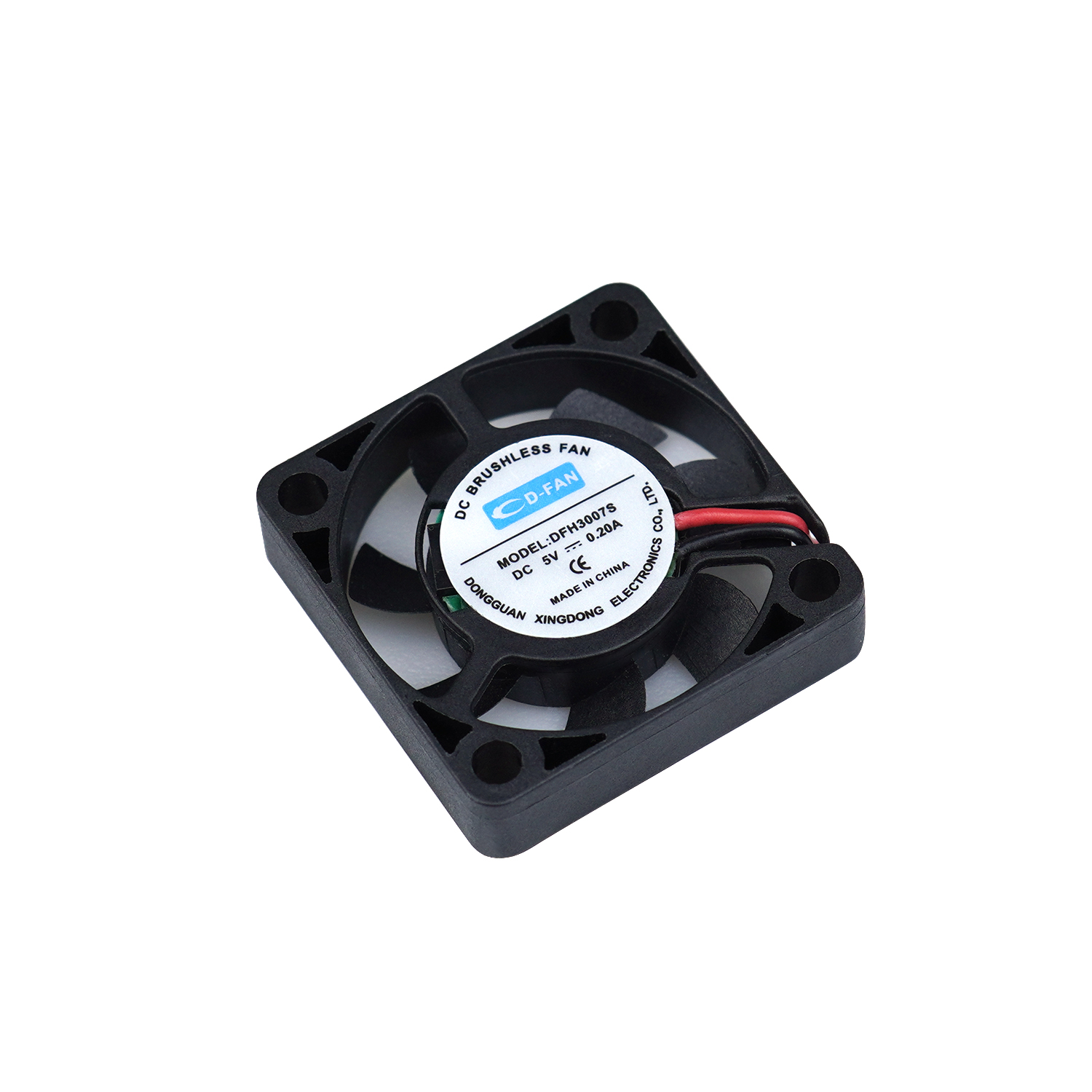

3006
D-FAN
Plastic
| ● Specifications（规格） | |||||||||
| 型号 Model | 轴承类型 Bearing Type | 电压 Rated Voltage | 电压范围 Operation Voltage | 电流 Current | 转数 Speed | 风量 Air Flow | 风压 Static Pressure | 噪音 Noise Level | 重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| DFH3006S | Sleeve | 5 | 4.5～5.5 | 0.20 | 8000 | 3.09 | 2.87 | 25.44 | 7 |
| DFM3006S | 0.16 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006S | 0.12 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| DFH3006B | Ball | 0.20 | 8000 | 3.09 | 2.87 | 25.44 | |||
| DFM3006B | 0.16 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006B | 0.12 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| DFH3006S | Sleeve | 12 | 10.8～13.2 | 0.10 | 8000 | 3.09 | 2.87 | 25.44 | |
| DFM3006S | 0.08 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006S | 0.06 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| DFH3006B | Ball | 0.10 | 8000 | 3.09 | 2.87 | 25.44 | |||
| DFM3006B | 0.08 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006B | 0.06 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| Notes:1.Specifications Subject To Change Without Notice; | |||||||||
| 2.Design and provide products according to customer requirements. | |||||||||
How to choose the cooling fan fo mini ?
First, be light in weight, or small in size. If the thickness of the DC fan is thinner, the size will be larger and the weight will be smaller, but the material cost will be higher.
And the other weight, if you want to do from the characteristics of the material, with light materials, may be expensive.
The DC fan of Dongguan Xingdong Electronics Co., Ltd. is only 4g in light weight, with an external size of 30×30×6mm, and the current can be as low as 0.12mA. It is widely used in products requiring light weight of DC fans.
| ● Specifications（规格） | |||||||||
| 型号 Model | 轴承类型 Bearing Type | 电压 Rated Voltage | 电压范围 Operation Voltage | 电流 Current | 转数 Speed | 风量 Air Flow | 风压 Static Pressure | 噪音 Noise Level | 重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| DFH3006S | Sleeve | 5 | 4.5～5.5 | 0.20 | 8000 | 3.09 | 2.87 | 25.44 | 7 |
| DFM3006S | 0.16 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006S | 0.12 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| DFH3006B | Ball | 0.20 | 8000 | 3.09 | 2.87 | 25.44 | |||
| DFM3006B | 0.16 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006B | 0.12 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| DFH3006S | Sleeve | 12 | 10.8～13.2 | 0.10 | 8000 | 3.09 | 2.87 | 25.44 | |
| DFM3006S | 0.08 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006S | 0.06 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| DFH3006B | Ball | 0.10 | 8000 | 3.09 | 2.87 | 25.44 | |||
| DFM3006B | 0.08 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| DFL3006B | 0.06 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| Notes:1.Specifications Subject To Change Without Notice; | |||||||||
| 2.Design and provide products according to customer requirements. | |||||||||
How to choose the cooling fan fo mini ?
First, be light in weight, or small in size. If the thickness of the DC fan is thinner, the size will be larger and the weight will be smaller, but the material cost will be higher.
And the other weight, if you want to do from the characteristics of the material, with light materials, may be expensive.
The DC fan of Dongguan Xingdong Electronics Co., Ltd. is only 4g in light weight, with an external size of 30×30×6mm, and the current can be as low as 0.12mA. It is widely used in products requiring light weight of DC fans.
